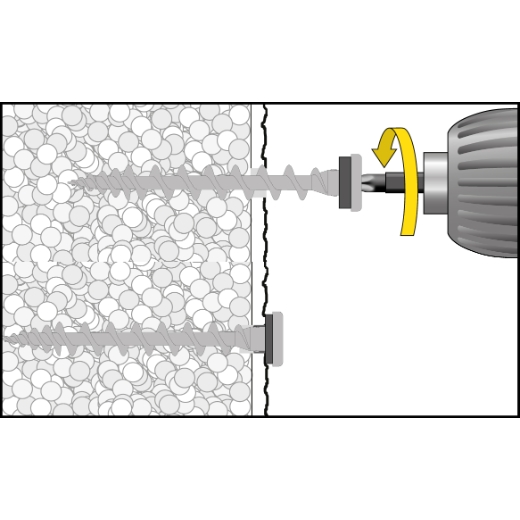

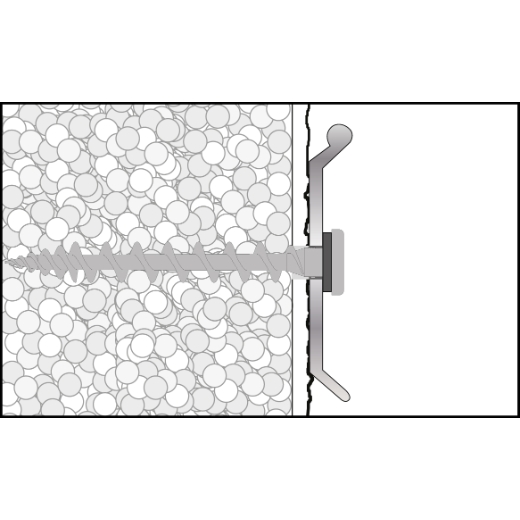

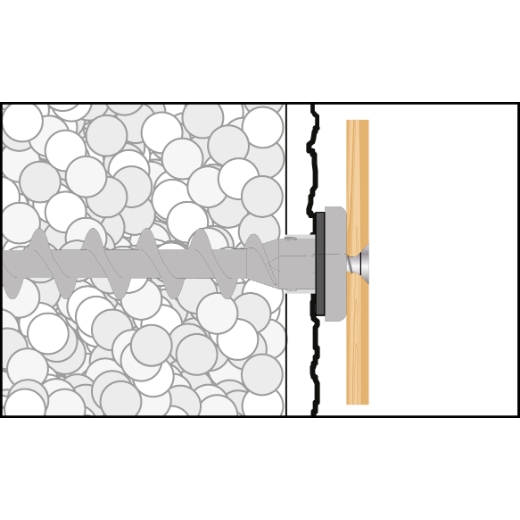

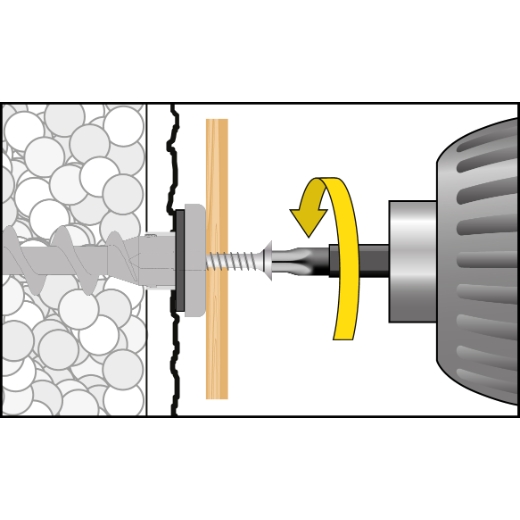

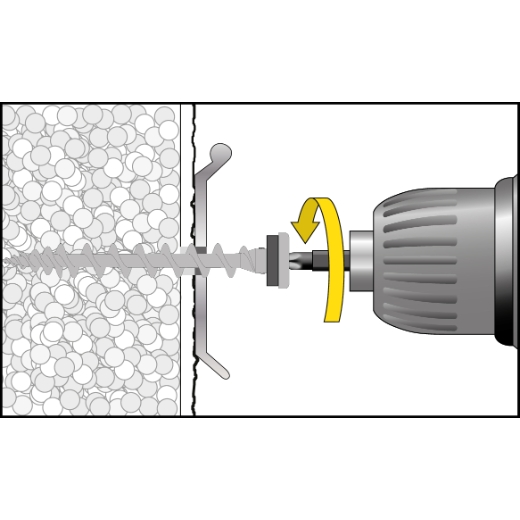

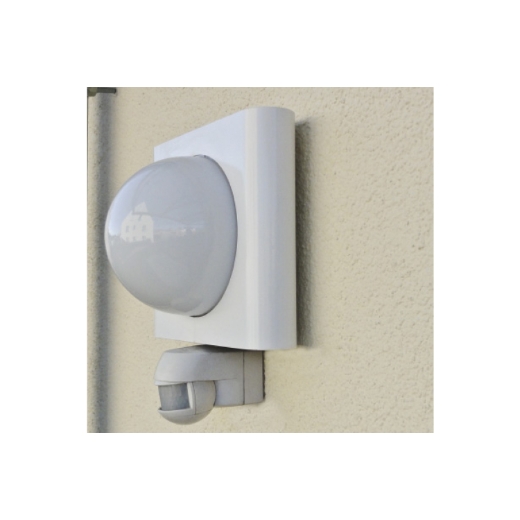

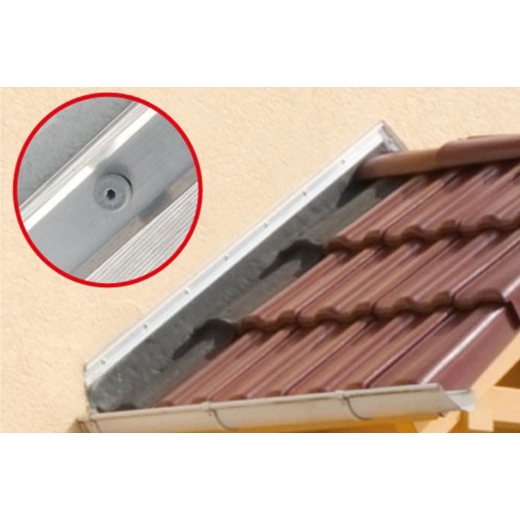

Insulation screw IPS 80 signal white is perfectly suitable for direct fastening into insulation materials without thermal bridges of wall connection profiles, metal sheets, base protection profiles, cornice covers, motion detectors, lamps, signs, etc. The screw is made out of glass fibre-reinforced nylon, that means: aging, weather and UV-resistant. The IPS has a stylish flat head with EPDM-sealing for optimal sealing and adaption to the ground. With the TX-Drive (TX25) you get a fast and easy installation. The head hole allows light duty fixings in combination with a screw 3,5 mm. A distinctive thread ensures good hold in insulation boards, furthermore the IPS fits through a 8mm hole. No pre-drilling in plaster due to sharp drilling rip, therefore you get an extremely fast mounting. Because of the length of 80mm the IPS is suitable for nearly all insulated facades (from 80mm) out of polystyrene boards etc.
The pre-assembled and weather resistant EPDM sealing ensures clean sealing against driving rain up to wind force 11 (violent storm), tested in accordance to DIN EN 1027 by the "Prüfzentrum für Bauelemente" (testing center for building elements) Pfb in Rosenheim, Germany. The sealing ring prevents water and cold from penetrating the façade and seals it permanently. No subsequent sealing is necessary, which saves you an installation step. The drill hole is automatically sealed rainproof and the energy efficiency of the insulated façade is maintained.
