Insulation fixings

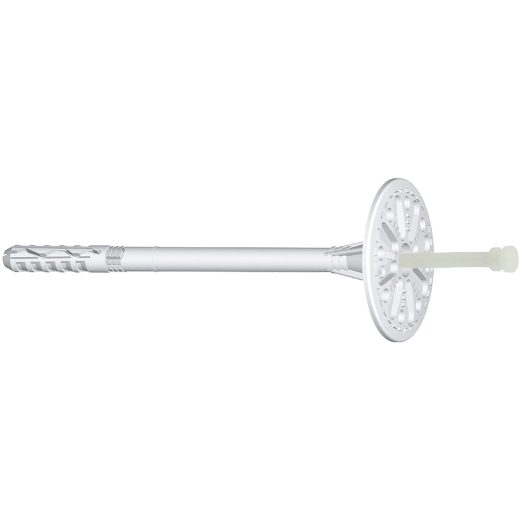

Insulation fastener IPD 10x140
en
Description

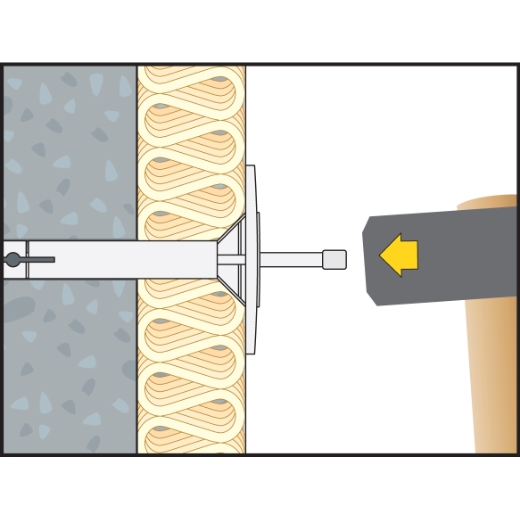

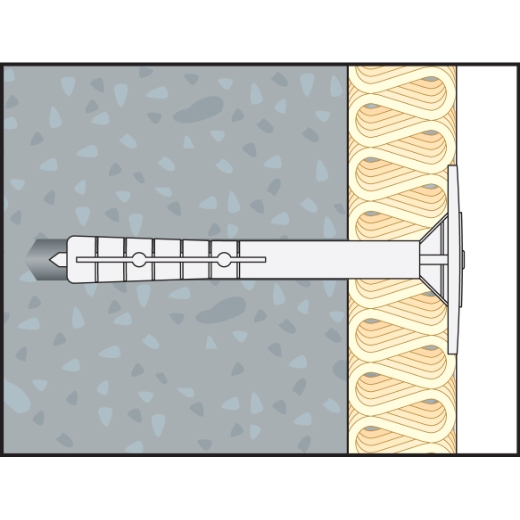

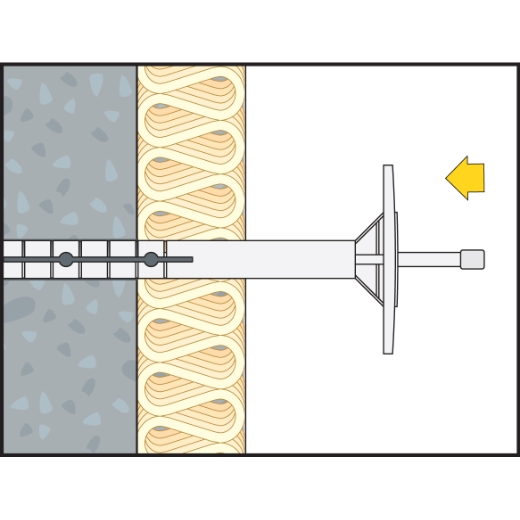

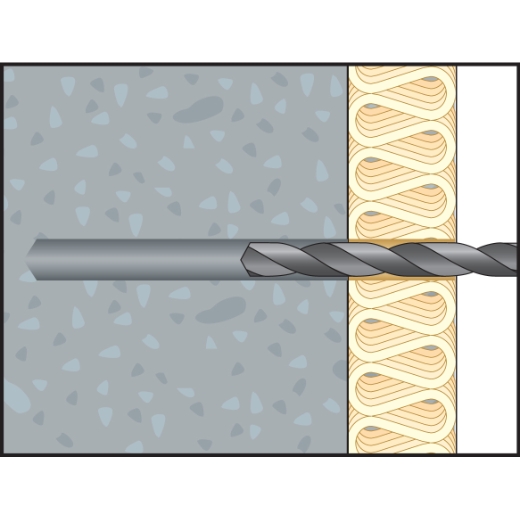

The insulation fastener IPD 10x140 is ETA approved for ETICS (External thermal insulation composite systems) and suitable for fastening solid insulation boards, e.g. polystyrene hard foam boards. Drill a drill hole through the insulation material and push / hammer the insulation fastener in – easy and fast. The stable design and impact resistant glass fibre reinforced plastic nail prevent bending when hitting in, while the textured surface of the plate provides a good bond for plaster. Additionally, the IPD 10 is suitable for a variety of base materials, like concrete and different hollow and solid bricks.
Technical details
| GTIN/EAN | 4250438918804 |
| Article number | 910140IPD200 |
| Drill hole diameter [mm] | 10 |
| Drill hole depth [mm] | 40 |
| Anchorage depth [mm] | 30 |
| Plug length [mm] | 140 |
| Thickness of fixture [mm] | 110 |
| Disc diameter [mm] | 60 |
| Material | Plastics |
| Screw material | Plastics |
| Packaging Units | 200 |
| Packaging Type | Carton |
Additional data
| bmecat-characteristic-celo-basematerial | Hollow aerated concrete block |
Technology
- Fastening of pressure-resistante insulation boards
