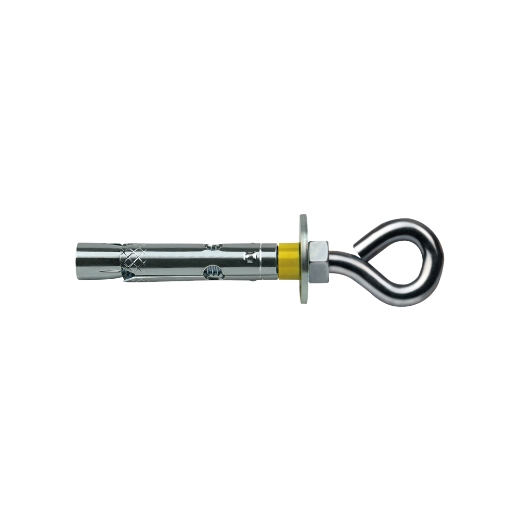

The Sleeve Anchor Dnbolt DA Ø 10x60 with Eyebolt (zinc plated) is perfectly suitable for a wide range of applications in non-cracked concrete. As an all-round metal anchor for many day-to-day fastening tasks, Dnbolt achieves medium loads of up to 1,000 kg (valid only for versions without hooks or eyebolts).

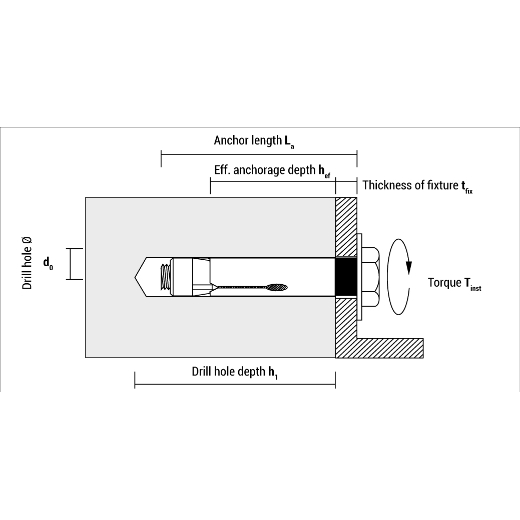

The sleeve anchor ensures secure expansion through its anti-rotation cone with ribs. Due to its special sleeve construction, the fixture can be flush with the concrete surface. The chamfered sleeve guarantees smooth gliding on the cone, providing a secure and reliable fixing.
Choose from our wide assortment:
- Dnbolt DT with hex-head screw (zinc plated or stainless steel A2, 8, 10, 12 ETA-approved)
- Dnbolt DV with countersunk head (zinc plated, 8, 10, 12 ETA-approved)
- Dnbolt DA with eyebolt (zinc plated)
- Dnbolt DG with hook (zinc plated)
