Plastic plugs
Scaffold plug GR 14-70
en
Description

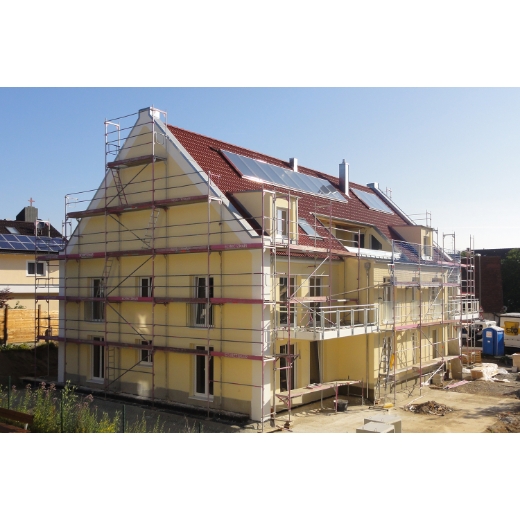

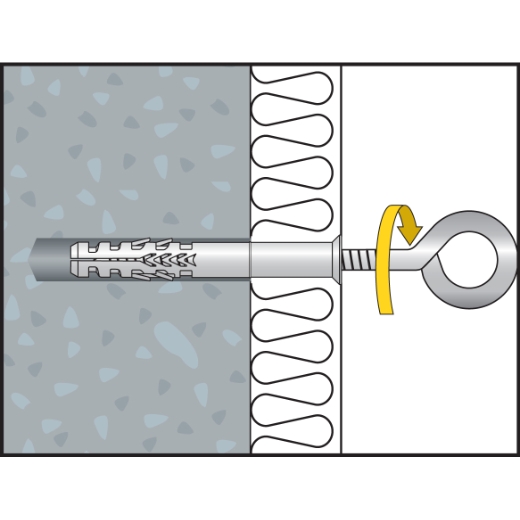

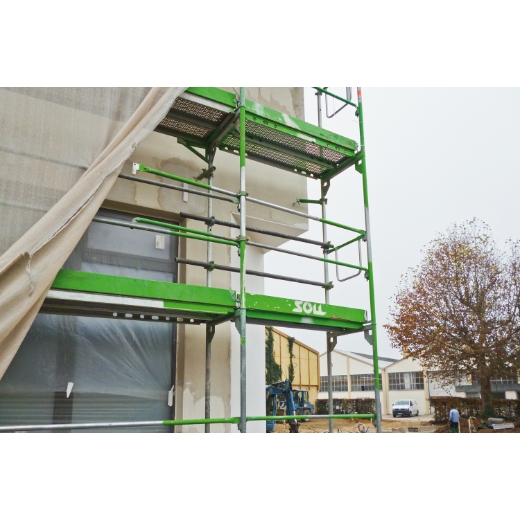

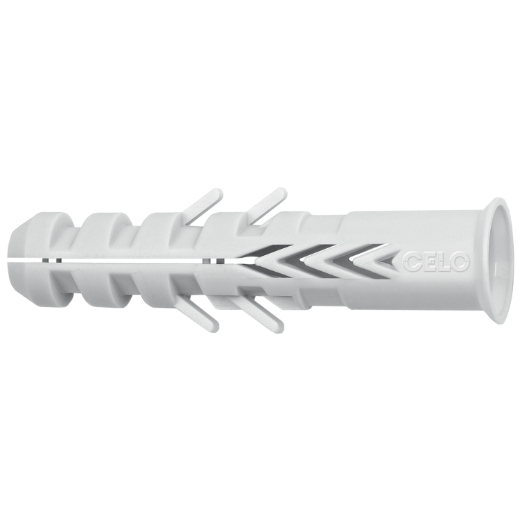

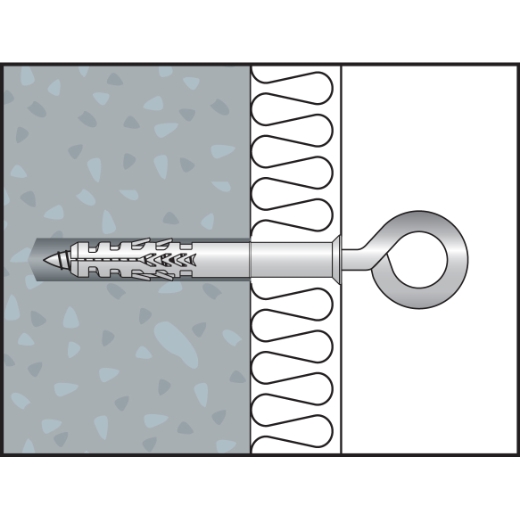

The scaffold plug GR 14-70 is your specialised plug for scaffold fixings in solid base material according to DIN 4420 (protectice scaffolding) and the guidelines of the German professional construction associations. The high-quality, ageing resistant nylon plug GR matches optimally with the eyebolt screw OES and combined they achieve highest pull out values. Markings on the eyebolt screw help to screw in the screw with the correct depth. After the removal of the scaffold you can use the cover cap AK to hide and seal the remaining plug.

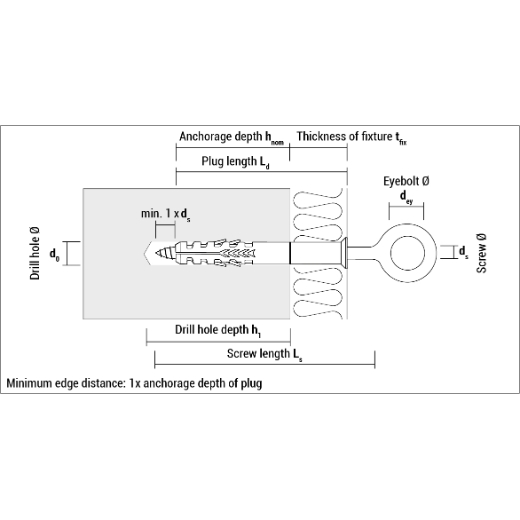

Technical details
| GTIN/EAN | 4001990525104 |
| Article number | 91470GR |
| Screw diameter [mm] | 12 |
| Drill hole diameter [mm] | 14 |
| Drill hole depth [mm] | 90 |
| Anchorage depth [mm] | 70 |
| Plug length [mm] | 70 |
| Thickness of fixture [mm] | |
| Material | Nylon |
| Packaging Units | 40 |
| Packaging Type | Box |
Additional data
| bmecat-characteristic-celo-basematerial | Solid sand-lime brick |
