Description

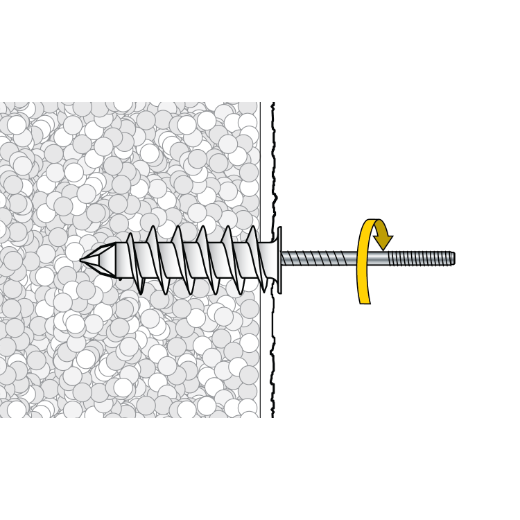

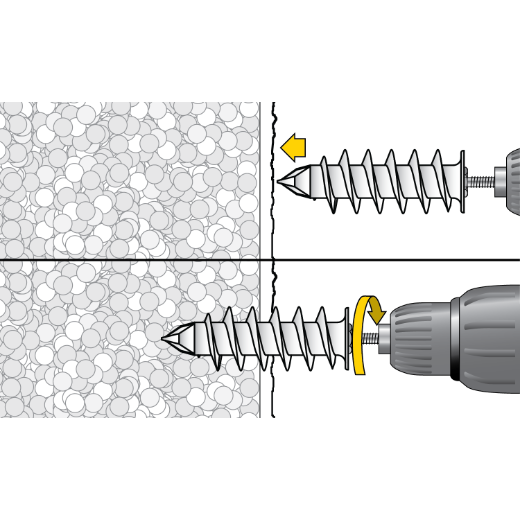

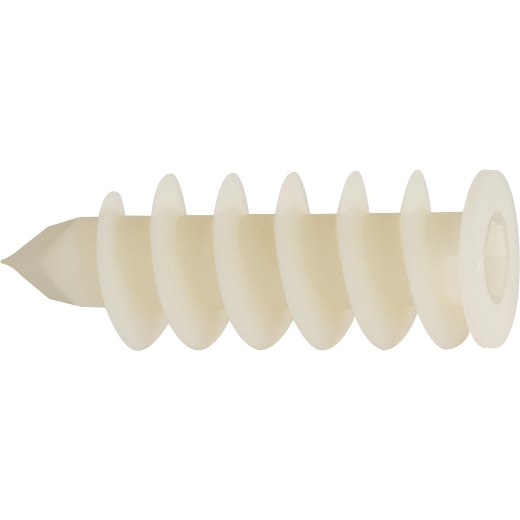

With the insulation plug IPL 95 direct fastening into external insulation material is possible - without thermal bridge. It is therefore a perfect solution for fixing in thermal insulation composite systems, hard-foam boards, polystyrene boards and many other substrates. The IPL consists of ageing- and weather-resistant nylon, is temperature-resistant from -40 to +80 °C and, thanks to its sharp cutting tip, drills reliably through hard ETICS plaster (up to 7 mm) - without pre-drilling.

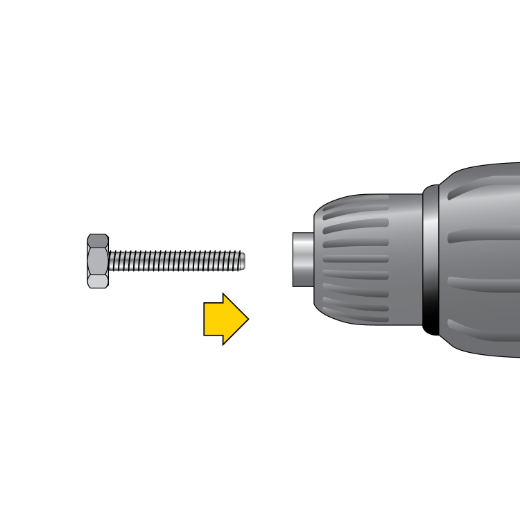

The larger IPL 95 with head Ø 32 mm is ideal for larger lamps and letterboxes, but is also suitable for fixing rainwater downpipes. A metric screw M8 x 30 is included as setting tool for the SW13 drive of the plug.

Technical details

GTIN/EAN 4250438906603
Article number 995IPL

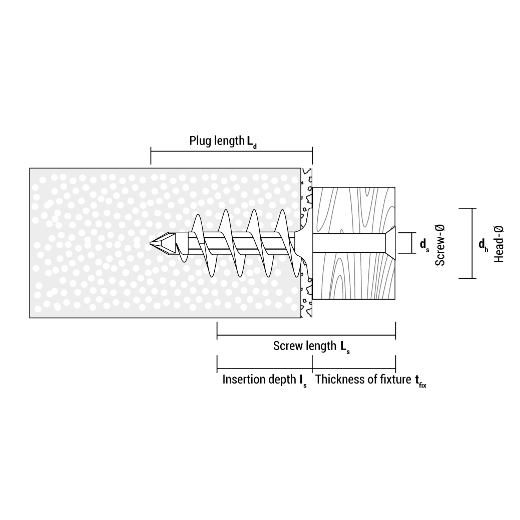

Screw diameter [mm] 8 - 10
Plug length [mm] 95
Screw insertion depth [mm] 40 - 80
Recess type SW13
Head diameter [mm] 32
Material Nylon
Packaging Units 25
Packaging Type Box

Additional data

bmecat-characteristic-celo-basematerial Heraklith board

Technology

  • Lighting
  • Motion sensor/detector
  • Letterbox

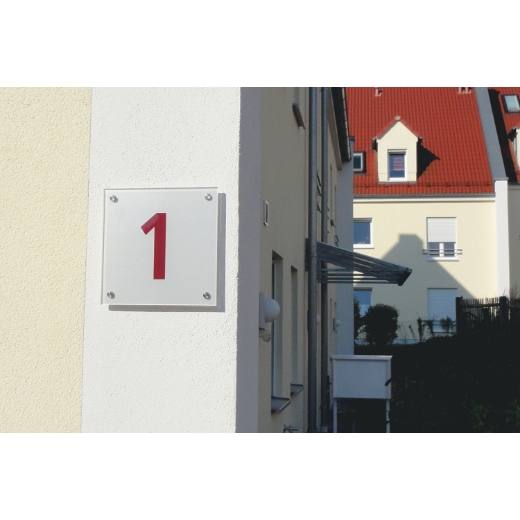

  • Signs
  • Clothes hook

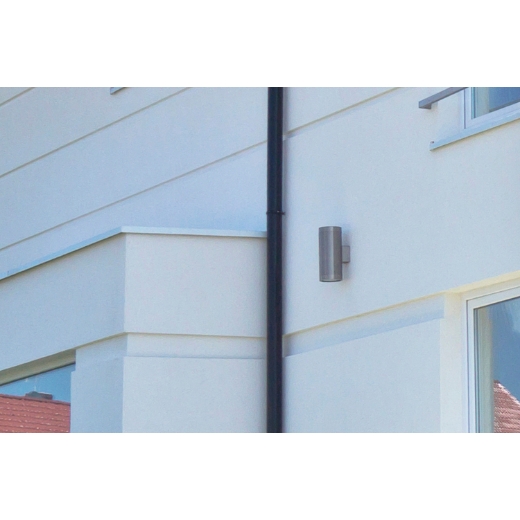

  • Rainwater downpipes
  • Window blinds
